137-5541 1375541 Fuel Priming Pump Excavator Spare Parts Fit For 311C 312C 313D 314C

• 137-5541 1375541 Fuel Priming Pump Excavator Spare Parts Fit For 311C 312C 313D 314C​

• Specifiion

Category	Engine Parts；Fuel Filter
Name	Fuel Priming Pump
Parts No	137-5541 1375541
Machine Number	311C 312C 313D 314C 315C 318D L 319D
Lead time	1-3 DAYS
Quality	Brand new, OEM quality
MOQ	1 PCS
Means of transport	By sea/air, DHL FEDEX UPS TNT
Packing	As request or standard packing

• Key functions & working principle

Working Principle	1. Priming Initiation: When the pump lever is pulled upward (suction stroke), the diaphragm expands, creating a vacuum in the pump chamber. The inlet valve opens, drawing fuel from the tank through the fuel line/filter screen into the chamber.
	2. Fuel Delivery: Pushing the lever downward (compression stroke) compresses the diaphragm, increasing pressure in the chamber. The inlet valve closes, and the outlet valve opens, forcing fuel out of the pump into the fuel lines/high-pressure injection pump.
	3. Air Purge: Repeating the lever stroke displaces air from the fuel system (air exits via bleed screws on the fuel filter housing or injection pump) until a steady stream of fuel (no air bubbles) flows out – indicating the system is fully primed.
	4. Pressure Retention: After priming, non-return valves keep fuel in the lines (preventing air re-entry) and maintain low pressure, ensuring the engine starts smoothly.
Core Functions	1. Air Purging: Removes air from fuel lines, filter housings, and injection pumps – air locks cause hard starting or engine misfires, so this is critical post-maintenance/fuel depletion
	2. Fuel Priming: Fills the low-pressure fuel system with diesel fuel, eliminating dry starts that damage high-pressure injection pumps
	3. Emergency Priming: No electrical power needed – enables on-site priming in remote locations (e.g., construction sites with no power access)
	4. Low-Pressure Fuel Transfer: Can temporarily transfer fuel between tanks (e.g., emergency refueling in the field)

• Compatible models

ARTICULATED TRUCK 725 730 735 740 D350E II D400E II
ASPHALT PAVER AP-1000 AP-1000B BG-2455C BG-245C
BACKHOE LOADER 446B 446D
CHALLENGER 65E 75E 85E 95E MTC735 MTC835
COLD PLANER PR-1000
COMBINE 480
EJECTOR TRUCK 730 740 D400E II
EXCAVATOR 235B 311C 311D LRR 312C 312C L 312D 312D L 313D 314C 314D CR 314D LCR 315C 315D L 318D L 319D 319D L 319D LN 320C 320C FM 320C L 320D 320D FM 320D FM RR 320D GC 320D L 320D LN 320D LRR 320D RR 321C 321D LCR 323D L 323D LN 323D SA 365B 365B II 365B L
FORWARDER 584
GEN SET ENGINE 3126B 3208 3304B 3306 3306B 3406B 3406C 3406E 3408 3412 3412C 3456 3508 3512 3516 C-12
GENERATOR SET 3304B 3306B 3406C 3406E 3408C 3412 3412C 3456 3512 C13 C15 C15 I6 C18 C18 I6 C27 C32 C6.6 C9
INDUSTRIAL ENGINE 3116 3126B 3176C 3196 3208 3304 3306 3306B 3406 3406B 3406C 3406E 3408 3408C 3408E 3412 3412C 3412E 3456 C-10 C-12 C-15 C-16 C-9 C11 C13 C15 C18 C27 C32 C7 C9
INDUSTRIAL TRACTOR TK371 TK381
INTEGRATED TOOLCARRIER IT12B
LANDFILL COMPACTOR 816F 826C 826G 836 836G
LOAD HAUL DUMP R1300 R1300G R1600 R1700G R2900
MARINE AUXILIARY C32
MARINE ENGINE 3126B 3176C 3196 3208 3304B 3306 3306B 3406B 3406C 3406E 3408 3408B 3408C 3412 3412C 3412D 3412E C-12 C12 C15 C18 C30 C32 C7 C9
MOBILE HYD POWER UNIT 323D L 323D LN 385C
MOTOR GRADER 120G 12G 130G 140G 140H 143H 14G 14H 160G 160H 163H 16H 24H
PETROLEUM ENGINE 3412E C-15 C11 C13 C15 C18 C32 C7 C9
PETROLEUM GEN SET C15 C18 C27 C32
PETROLEUM PACKAGE CX31-C13I CX31-C15I CX31-C18I CX31-C9I CX35-C18I CX35-P800 TH35-C11I TH35-C13I TH35-C13T TH35-C15I TH35-C15T
PETROLEUM TRANSMISSION TH31-E61 TH48-E70
PIPELAYER 561N 572R C.ater.pillar.

• More other pump applied to C A T heavey machine

1371296 PUMP GP-GEAR

D3C III, D3G, D4C III, D4G, D5C III, D5G

1057322 PUMP GP-MAIN HYDRAULIC

315, 317

1166724 PUMP GP-WATER

315, 315B, 315B FM L, 315C, 317B LN, 318B, D3C III, D3G, D4C III, D4G, D5C III, D5G

1455291 PUMP GP-CHARGE

939C, D4C III, D5C III

1471476 PUMP GP-CHARGE

D4C III, D5C III

1336766 PUMP GP-PISTON & GEAR

315B, 315B FM L, 315B L

1451077 PUMP GP-CHARGE

CX35-P800, D3C III, D6N, D6T, D6T LGP, D6T LGPPAT, D6T XL, TH31-E61, TH35-E81

1068263 PUMP GP-WATER

933, 933C, 939, 939C, D3C III, D4C III, D5C III

1375541 PUMP GP-FUEL PRIMING

120G, 12G, 130G, 140G, 140H, 143H, 14G, 14H, 160G, 160H, 163H, 1673C, 16H, 235B, 24H, 3116, 311C, 311D LRR, 3126, 3126B, 3126E, 312C, 312C L, 312D, 312D L, 313D, 314C, 314D CR, 314D LCR, 315C, 315D L,...

1072473 PUMP AS-WATER

3044C, 933, 933C, 939, 939C, D3C III, D4C III, D5C III

7T8890 PUMP AS WASHER

120M, 120M 2, 12M, 140M, 140M 2, 14M, 160M, 160M 2, 16M, 215B, 215C, 215D, 219D, 225, 225D, 227, 229, 229D, 231D, 235B, 235C, 235D, 245, 245B, 245D, 311B, 311D LRR, 312, 312B L, 312C L, 312D, 312D L, ...

4I1023 PUMP GP-GEAR

311, 311B, 312, 312B, 312B L, 315, 315B, 315B FM L, 315B L, 317, 317B LN, 318B, 320 L

1175033 PUMP AS-WATER

315, 315B, 315C, 317B LN, 318B, D3C III, D3G, D4C III, D4G, D5C III, D5G

1482950 PUMP GP-FUEL INJECTION

315B L

1989876 PUMP GP-WATER

312C, 315B L, 554, M312, M315

1754807 PUMP & MOTOR GP

1090, 1190, 1190T, 1290T, 307B, 312B L, 312C, 315B L, 315C, 317B LN, 318B, 318C, 320B, D6M, M313C, M313D, M315C, M315D, M315D 2, M316C, M316D, M317D 2, M318C, M318C MH, M318D, M318D MH, M322C, M322D, ...

1754806 PUMP & MOTOR GP-FUEL TRANSFER

307, D6R, D6R II

1272230 PUMP GP-FUEL INJECTION

M312, M315

1657606 PUMP GP-FUEL INJECTION

M312

2129336 PUMP AS

301.5, 301.6C, 302.5, 302.5C, 303.5, 304.5

1521800 PUMP AS

301.5, 302.5, 303.5, 304.5, 902, 904B, 904H, 906, 908

2010920 PUMP GP-GEAR

301.5

1536876 PUMP AS-LIFT

301.5, 302.5, 303.5, 304.5, 902, CB-334D, CB-335D

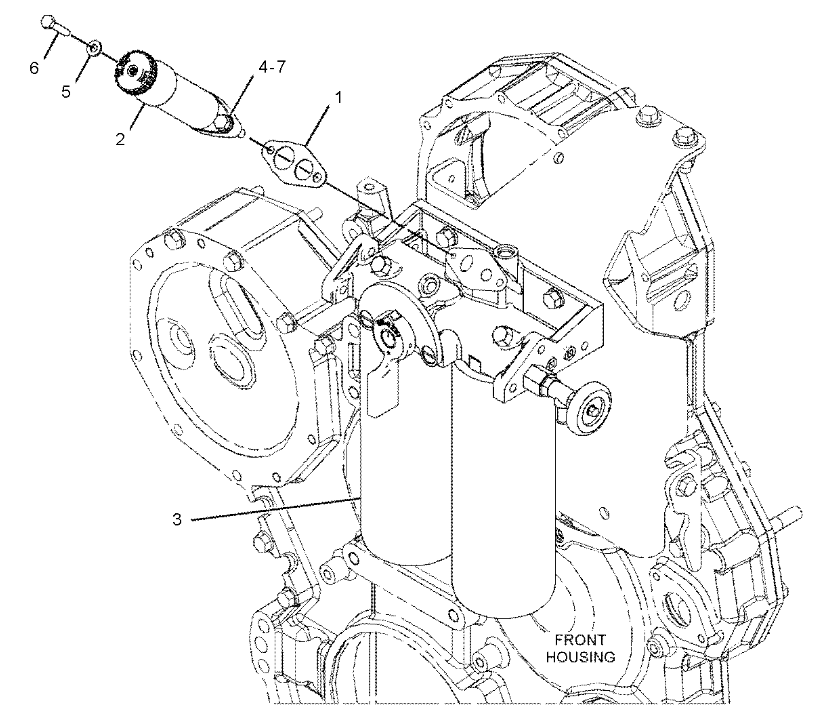

• Directory listing

Pos.	Part No	Qty	Parts name	Comments
1	1P-0436	[1]	GASKET (FUEL PRIMING PUMP)
2	137-5541	[1]	PUMP GP-FUEL PRIMING
	229-3218	[2]	VALVE AS
3	352-8992 Y	[1]	FILTER GP-FUEL
4	1B-7182	[1]	BOLT (5/16-18X1.25-IN)
5	5P-0537	[1]	WASHER-HARD (7.2X14.5X2-MM THK)
6	7B-2742	[1]	BOLT (1/4-20X1.25-IN)
7	9M-1974	[1]	WASHER-HARD (8.8X16X2-MM THK)
	Y		SEPARATE ILLUSTRATION

• We could supply the following spare parts

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

• Packing and Shipping

Packing Details :

inner packing : plastic film for wrapping

external packing : wooden

Shipping :

within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,

2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.

3. By Sea: Delivery from the Huangpu port .
